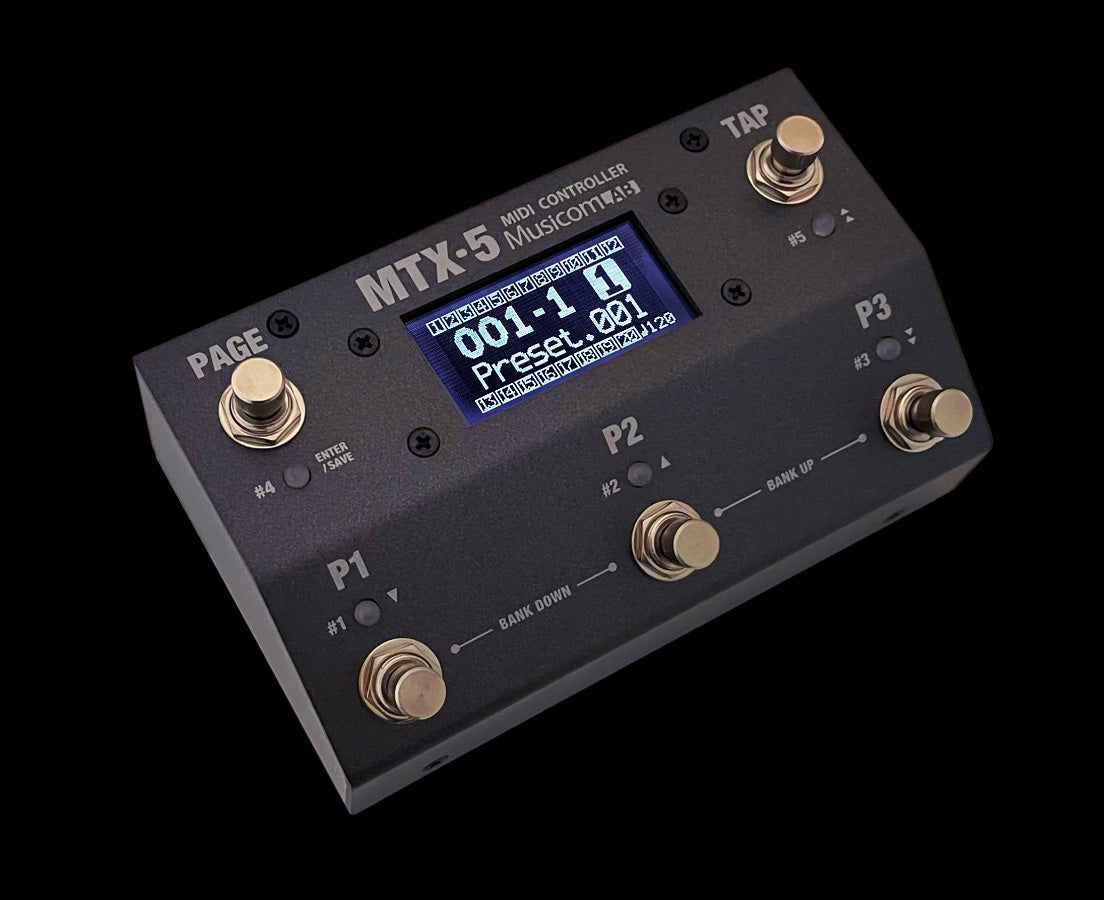

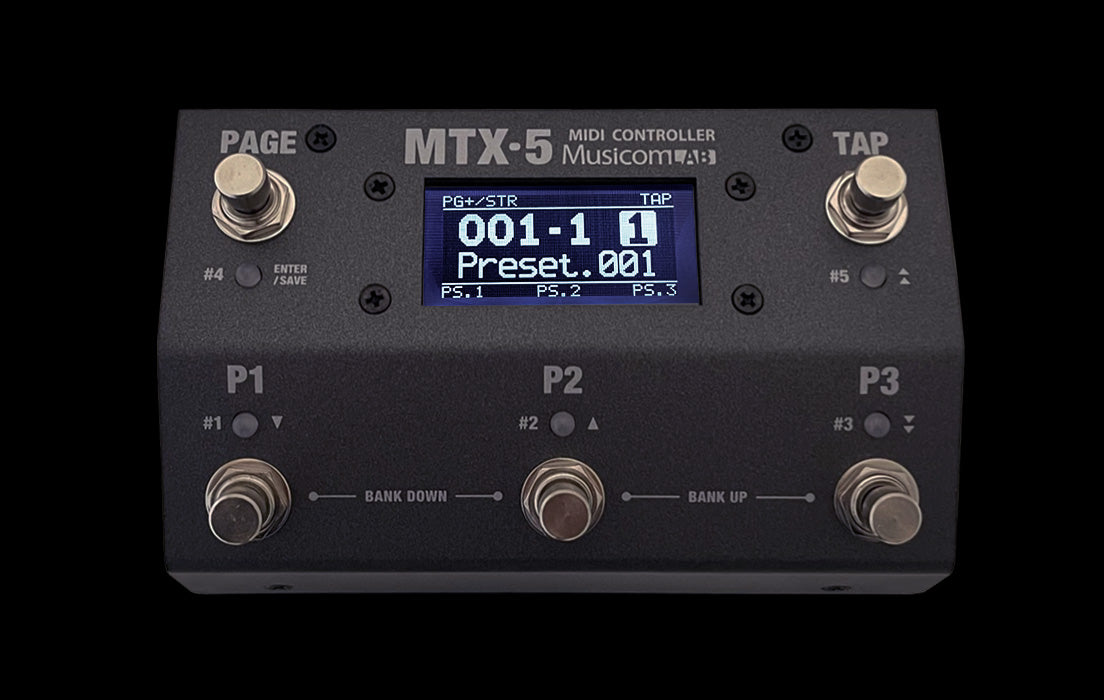

MusicomLAB MTX-5 MIDI Controller

The MTX-5 MIDI Controller is the ultimate floor-based MIDI foot controller that is compact and easy to use. The MTX-5 MIDI Controller has a powerful MIDI function, so it can also be used with rack-based rigs.
Create up to 870 presets (290 banks x 3 presets) and 1 global preset.
Create up to 870 songs.
Organize the 870 Songs into 64 sets of 56 songs.
Switches can be assigned to the user's preference.
Two expression pedals or four foot switches can be connected to the XPDL jack.
Three MIDI OUT connectors. (one standard MIDI connector and two 1/8 inch phone connectors)
Transmits 16 MIDI (PC, CC, Note, etc) messages, when a preset is changed.
Transmits 12 MIDI (PC, CC, Note, etc) messages when the switch assigned to page is pressed.
Transmits MIDI Time Clock. BPM can be stored in each bank preset and song preset.
80 MIDI System Exclusive slots.
USB Connection to a PC or MAC.
Easily copy presets, songs, sets and switches.
Graphic LCD display that can display preset/song titles and other status.

•   871 preset memory locations
  (290 banks of 3 presets, plus a Global Preset)
• Create up to 870 songs
• Organized the 870 songs in to 64 sets of 56 songs
• Switches can be assigned to the user's preference.
• 2 expression pedals or 4 foot-switches (XPDL1/XPDL2)

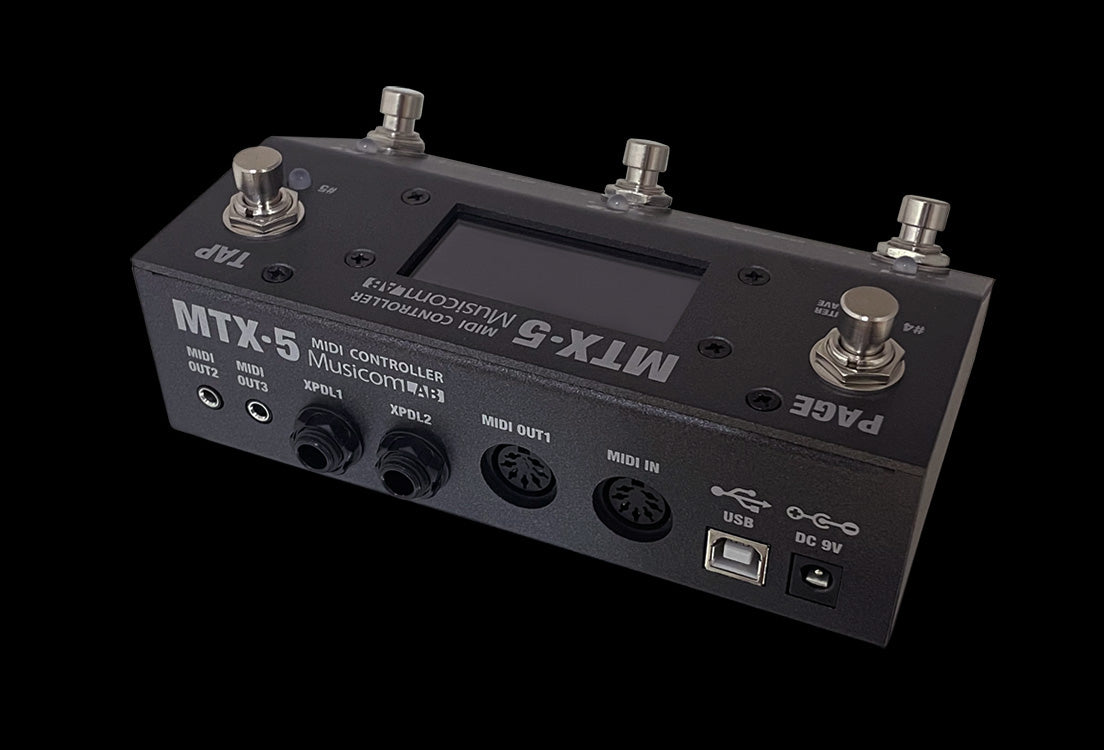

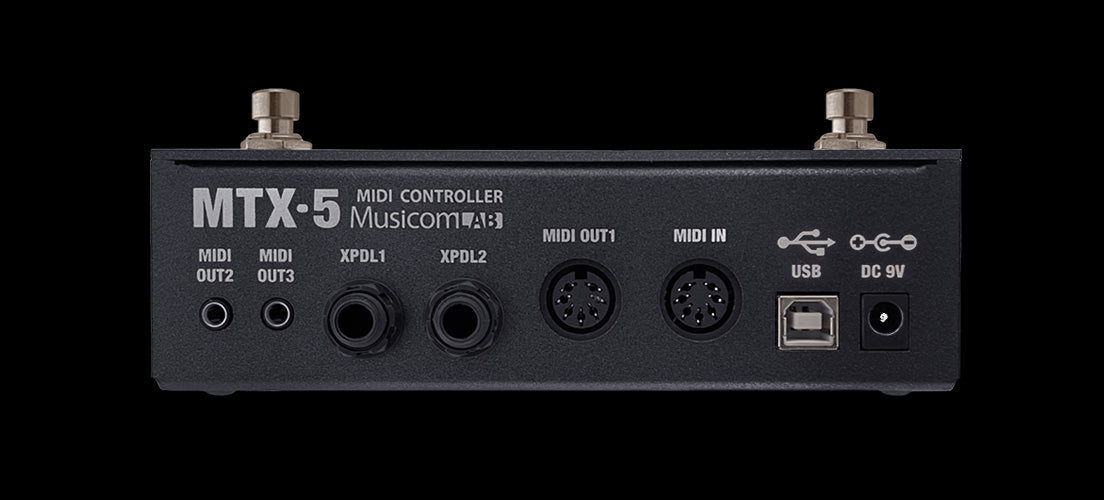

• 3 MIDI OUT connectors
     (one standard MIDI connector and two 1/8 inch phone connectors)
• 16 MIDI messages (PC, CC, Note or SysEx) each preset
• 12 MIDI messages (PC, CC, Note or SysEx) each switch
• MIDI Time Clock
• 80 MIDI System Exclusive slots
• USB Connection to a PC or MAC
• Graphic LCD for to show a lot of information
• Easily copy presets, banks, songs and sets
• Easily name presets, songs, sets, pages and switches
• Heavy-duty footswitches
• Powered by 9VDC(center negative) 100mA, phantom or USB
• Dimensions : 160(W) x 93(D) x 63(H) mm
  6.3(W) x 3.7(D) x 2.5(H) inches
• Weight : 550 g / 1.2 lb
